Description
Features

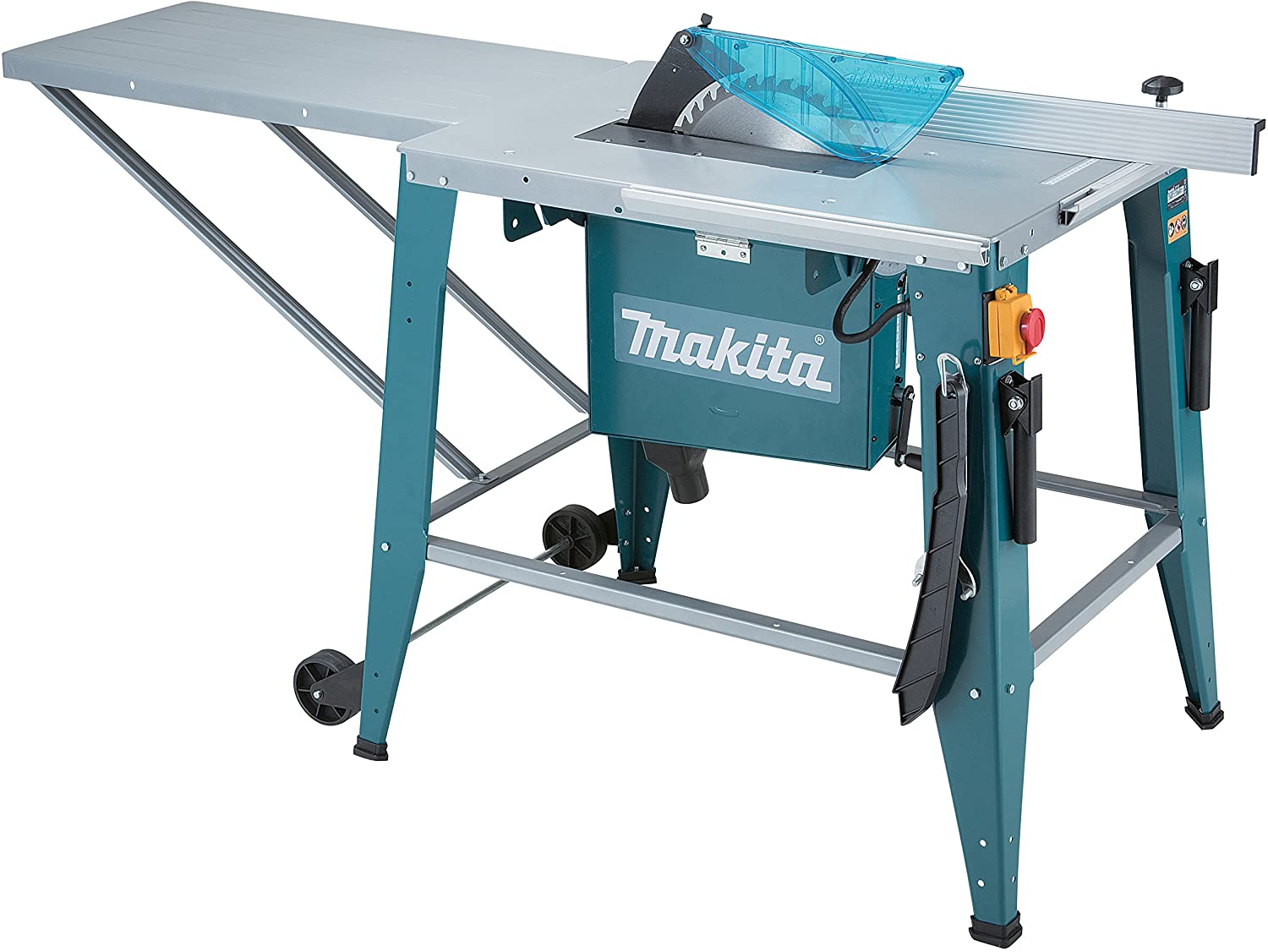

- Heavy-duty induction motor for high performance and a long, maintenance-free service life
- Large cutting capacity: Max cutting width up to 315 mm (12-3/8")
- Powerful 2,000 W motor delivers 3,400 RPM for fast cutting

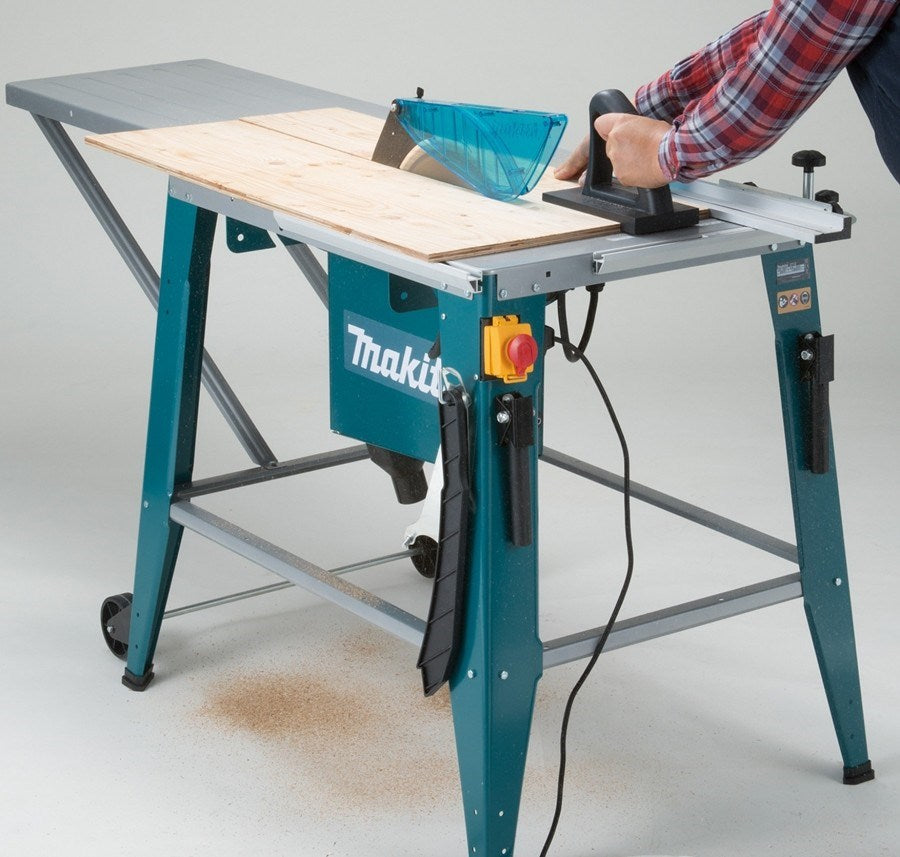

- Suitable for cutting concrete form plywood in the harsh operating environment
- Left extension sub-table is provided
åÊ
Specification
åÊ
| Bevel Capacity | 0å¡ - 45å¡ |
| Blade Diameter | 315 mm (12 - 3/8") |
| Max Cutting Capacity | 90å¡: 85 mm (3-3/8") 45å¡: 58 mm (2-1/4") |
| No Load Speed (RPM) | 50Hz: 2,950 60Hz: 3,400 |
| Dimensions (L x W x H) | 1,670 x 700 x 810 mm (65-3/4" x 27-1/2" x 32) |
| Net Weight | 54 kg (118.9 lbs.) |
| Power Supply Cord | 3.0 m (9.8 ft) |
